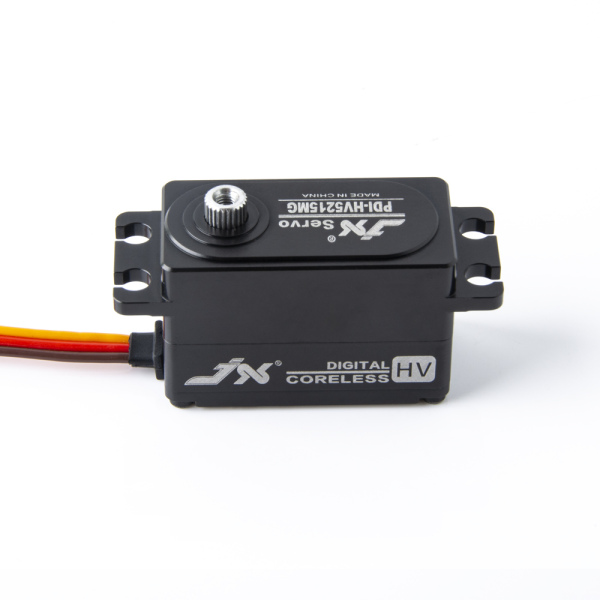

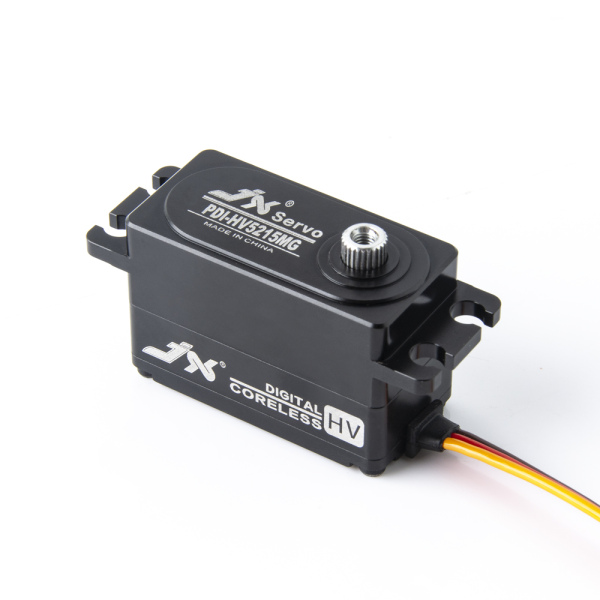

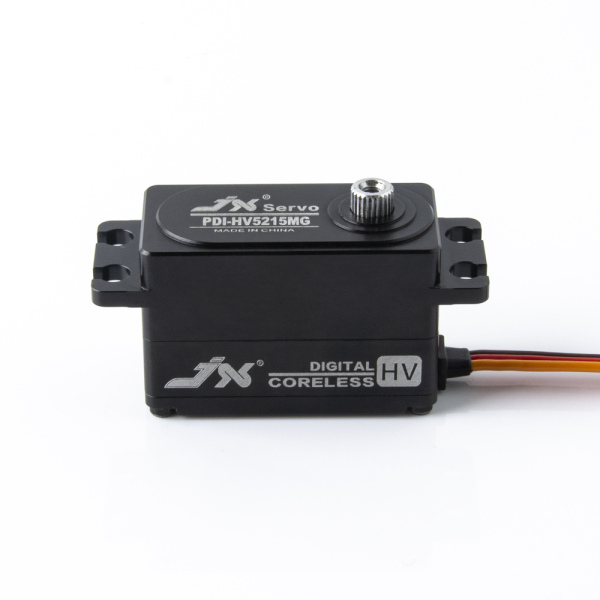

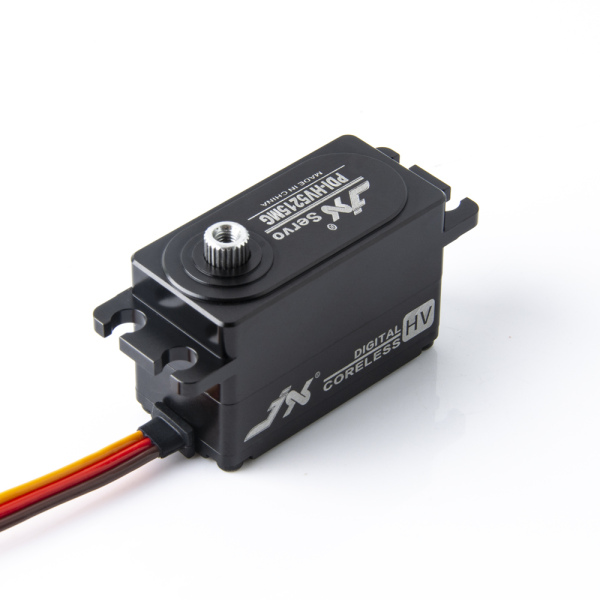

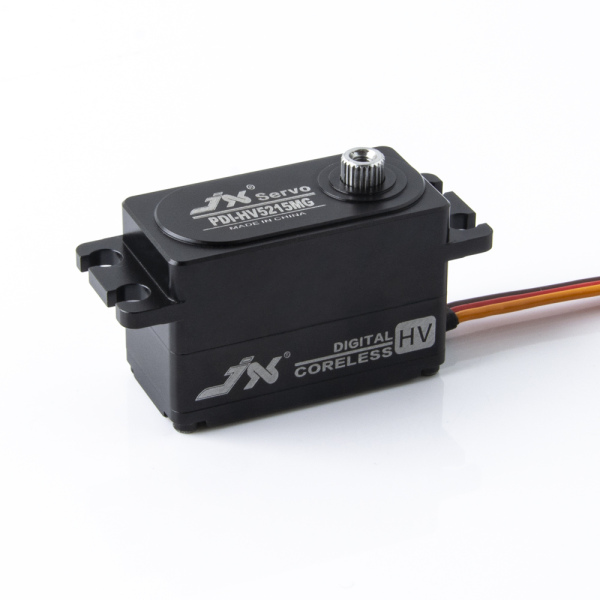

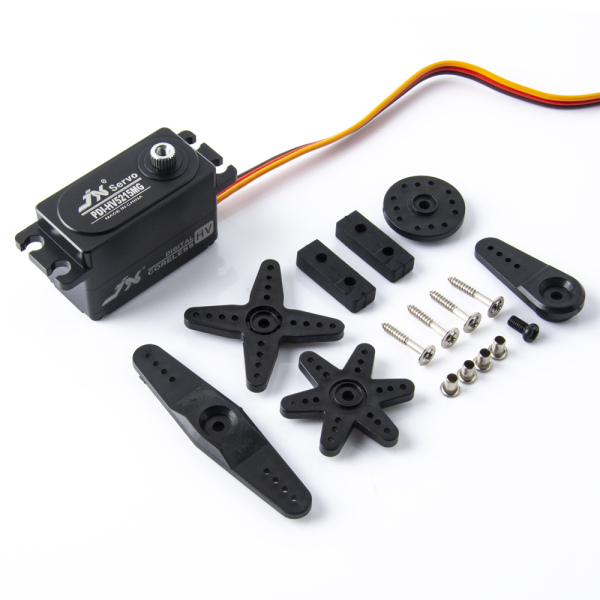

PDI-HV5215MG
|
Category: |
Coreless Servos |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Dead band: 2us
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~8.4V
Motor: coreless motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6V):13.2kg.cm
Stall Torque (8.4V): 15.6kg.cm
Dimensions: 40.5X20.5X27.5mm
Weight:52 g (1.67oz)
Connector Wire Length: JR 260 mm
Bearing: 2BB
