JX PRODUCT
B220
CNC full metal aluminum shell
High-precision metal gears
Double ball bearings
12V-18V high voltage digital brushless servo
PDI-2105MG
21g Fix-wing servo21g Fix-wing servo 21克固定翼舵机
Fast response Fast response 快速响应
High quality cored motorHigh quality cored motor 高品质有芯电机
Impact-resistant metal gearImpact-resistant metal gear 抗冲击金属齿轮
WP45
Waterproof servo IP67
8.4V High voltage
45KG torque brushless motor
Steering gear Dual bearings
About JX
Shantou Jixian Electronic Technology Co.,Ltd. (JX servo) was founded in 2006，It is an enterprise that integrates production and sales. JX servo is a high-tech enterprise specializing in the research and development, design, production, and sales of servo motors. We specialize in developing and producing high-quality servo systems for large unmanned aerial vehicles, industrial large-scale hydraulic servo motors and aerospace applications. The various changes in the attitude of aerospace missiles are also can achieve through the mutual cooperation of servo motors.
Shantou Jixian Electronic Technology Co., Limited
📞+86 13556315568(Wechat)
📮 sales3@jx-servo.com
Certification
JX

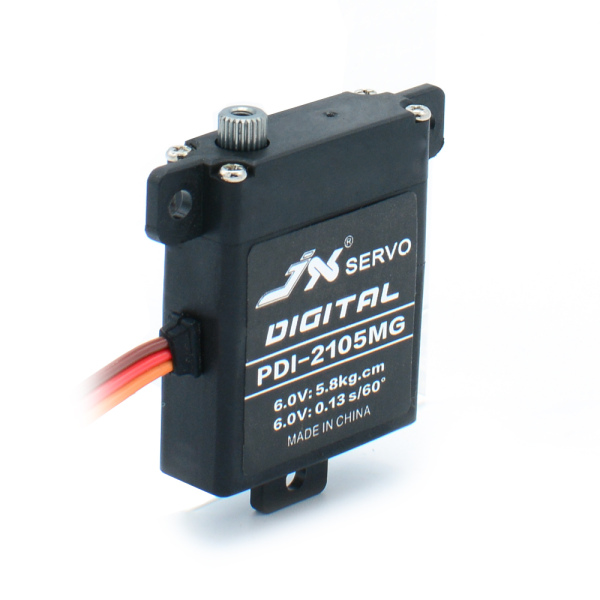

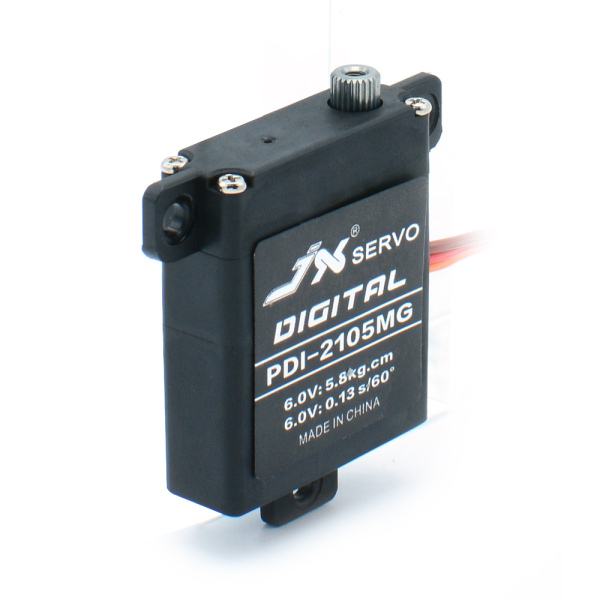

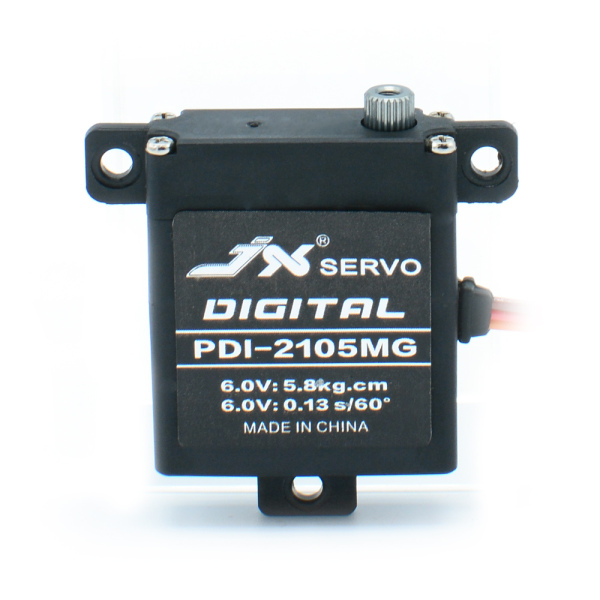

PDI-2105MG
|
Price: |
¥78.00 |
|
{{variant.name}}:
|
{{opt.name}}
{{opt.name}}
|
Dead band: 2μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (4.8V): 0.16sec/60°
Operating Speed (6.0V): 0.13 sec/60°
Stall Torque (4.8V): 4.8kg.cm
Stall Torque (6.0V): 5.8kg.cm
Potentiometer Drive: Direct Drive

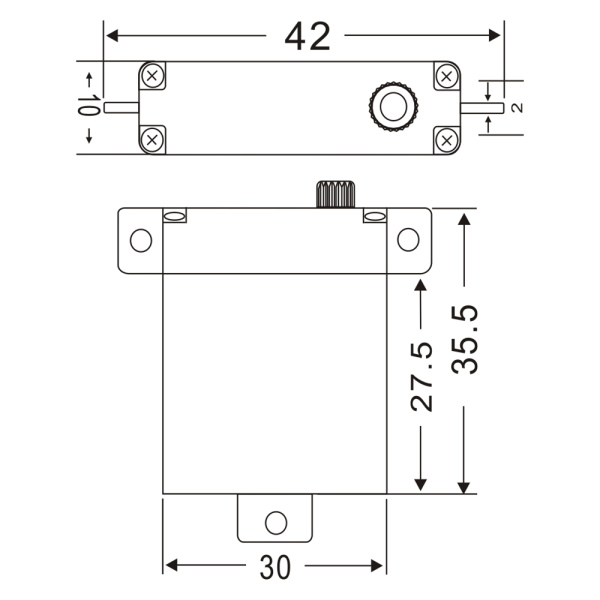

Dimensions: 30.0X10.0X35.5mm /1.18 X0.39X1.40 in
Weight: 21 g (0.74oz)
Connector Wire Length: JR/Futaba 200 mm
Bearing: 2BB Motor:Core Motor
