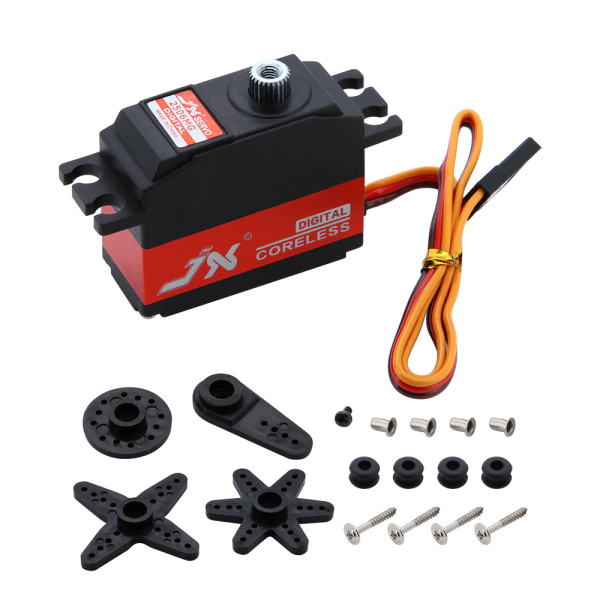

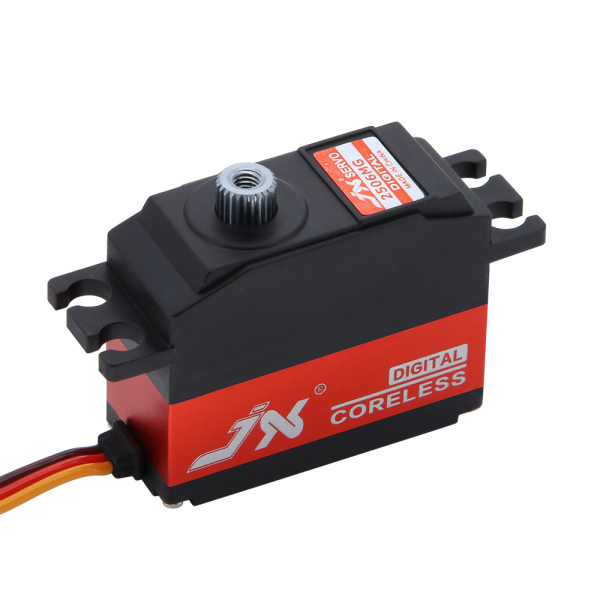

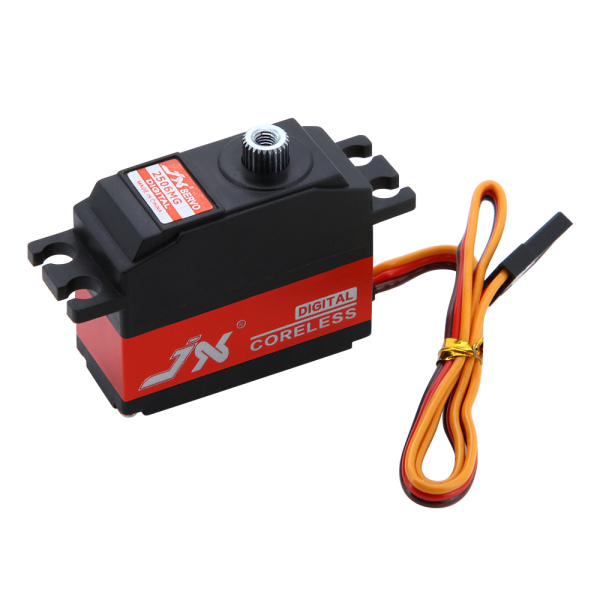

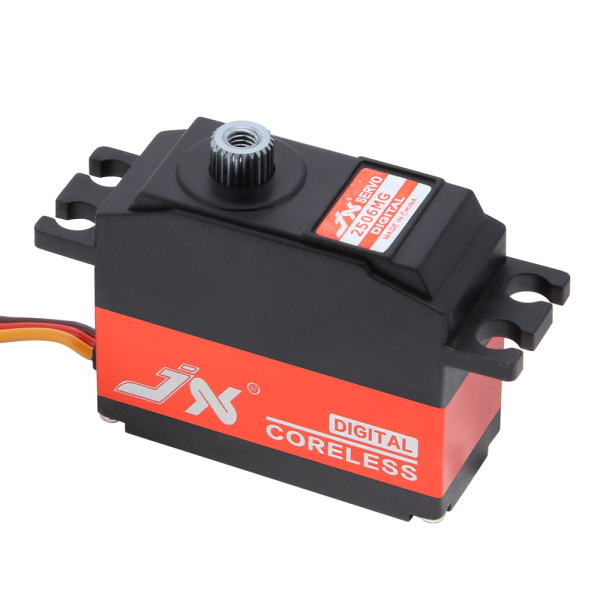

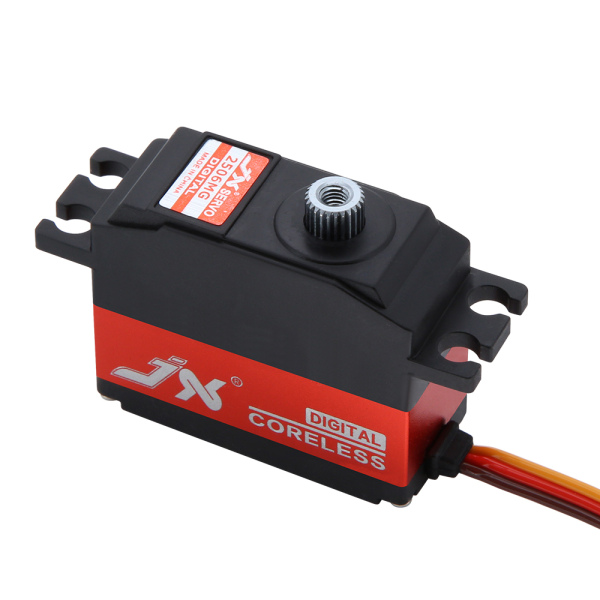

PDI-2506MG

Category:
Mini Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6V): 0.09 sec/60°
Operating Speed (7.4V): 0.07 sec/60°                             Stall Torque (4.8V): 5.3kg.cm
Stall Torque (6V): 6.6kg.cm                                                 Stall Torque (7.4V): 9.2kg.cm
Dimensions: 35.5X15X30mm
Weight: 26.32 g (0.93oz)
Connector Wire Length: JR 220mm
Bearing: 2BB
