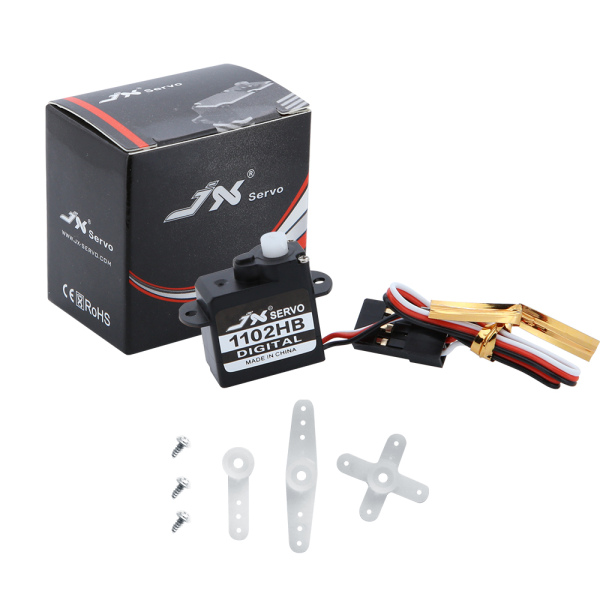

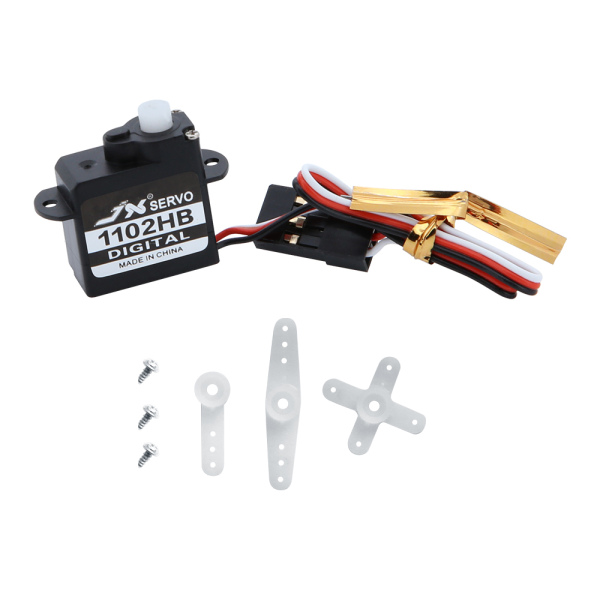

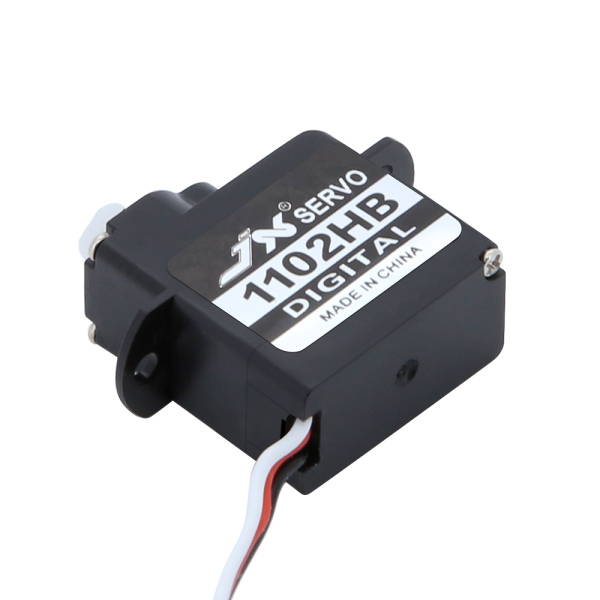

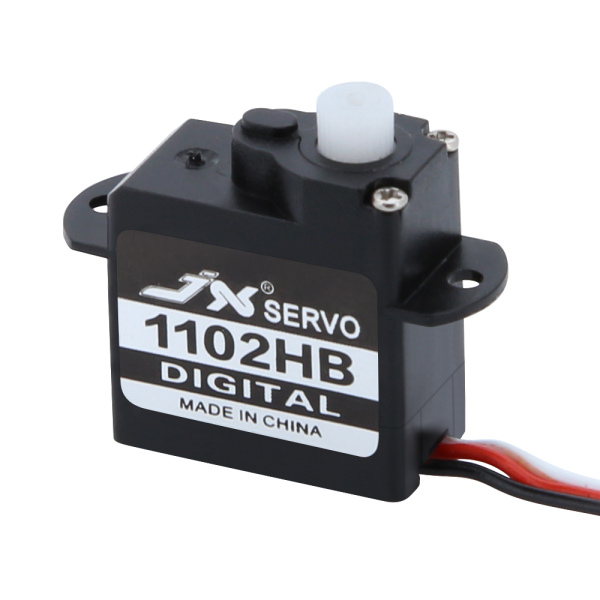

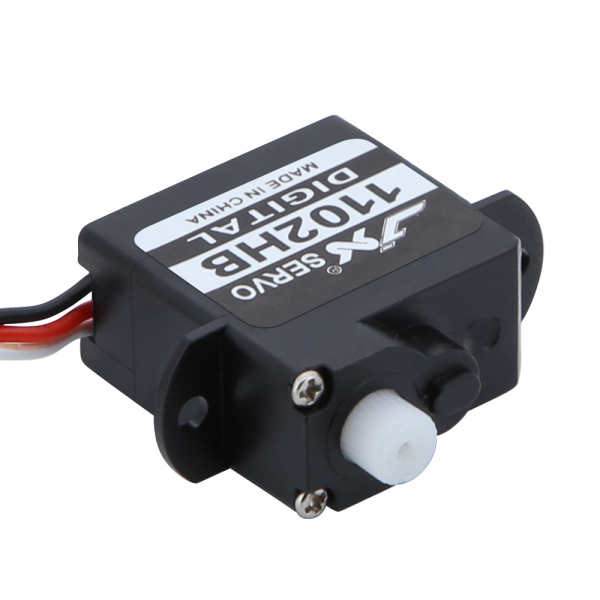

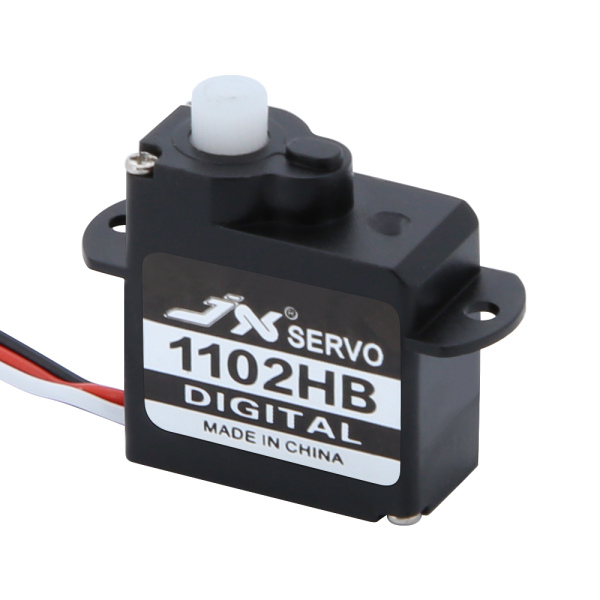

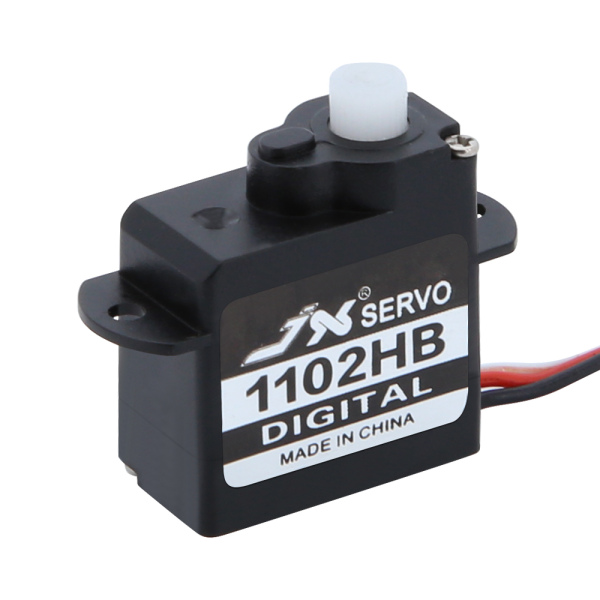

PDI-1102HB

Category:
Mini Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Dead band: 2μs
Working frequence: 1520μs / 300hz
Motor:coreless motor
Operating Voltage:  DC4.8-6.0 V
Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6.0V): 0.09sec/60°                        Stall Torque (4.8V): 0.19kg.cm (3.3 oz/in)
Stall Torque (6.0V): 0.24kg.cm (3.3 oz/in)                Dimensions: 16.3x8.4x17.5mm/0.64x0.32x0.69in
Weight:  2.1 g (0.074oz)
Connector Wire Length: JR  100 mm (3.94in)
