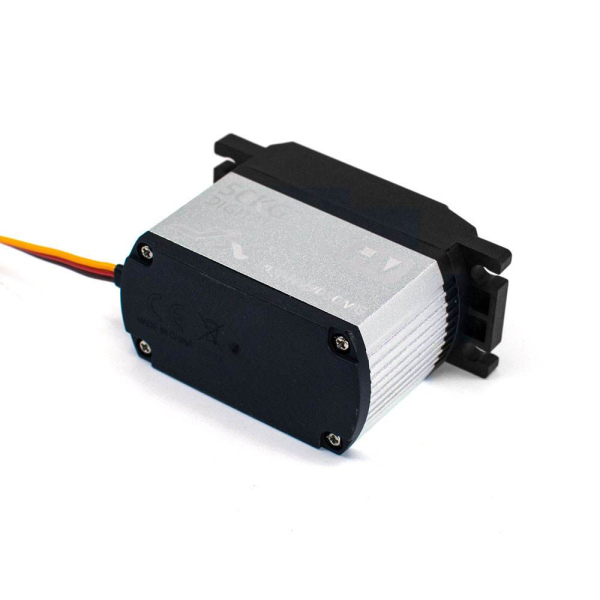

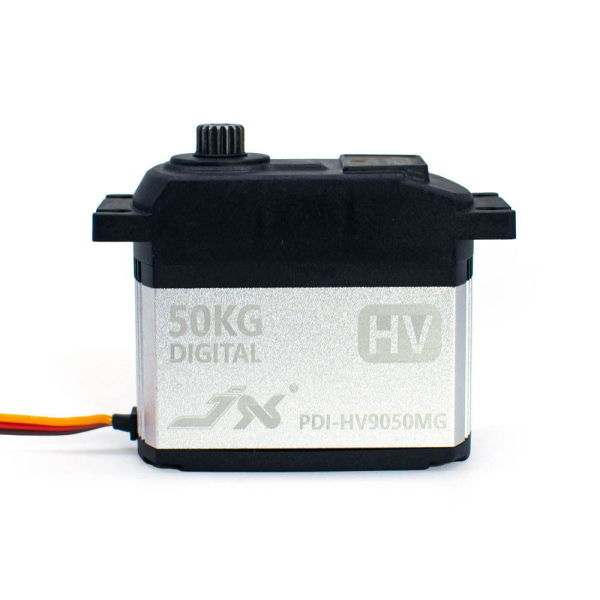

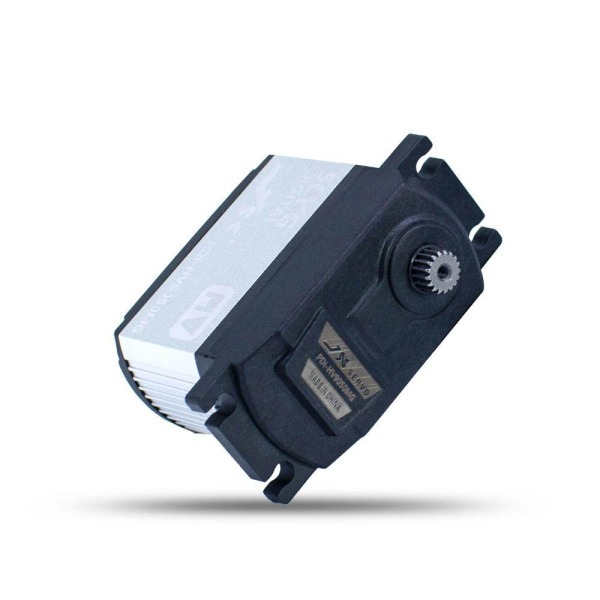

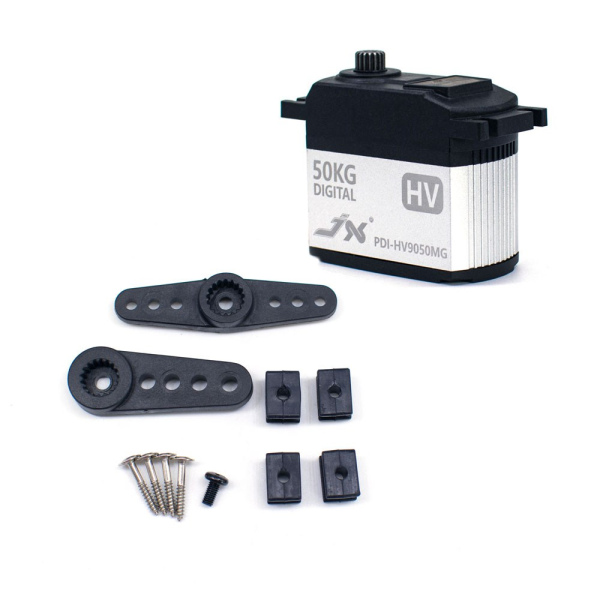

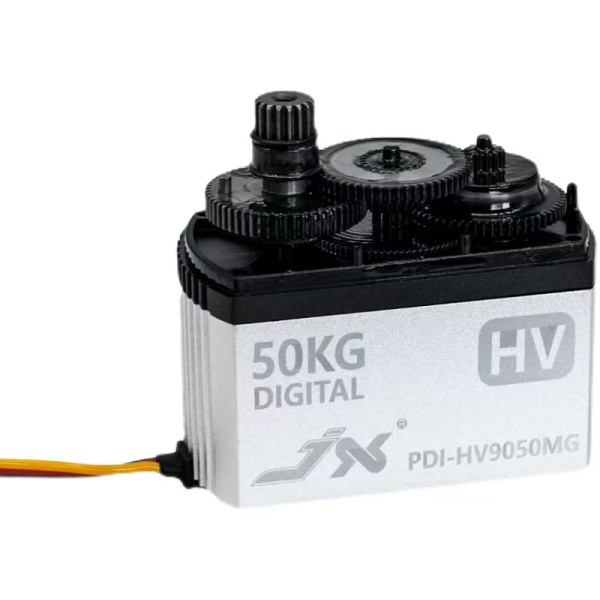

PDI-HV9050MG

Category:
1/5 Car Used and industrial Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Max Angle:160°
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=160°
Dead band: 6μs                                                     Working frequence: 1520μs / 330hz                           Motor: Cored Motor
Operating Speed (6.0V): 0.18sec/60°
Operating Speed (8.4V): 0.16sec/60°
Stall Torque (6.0V): 39kg.cm
Stall Torque (8.4V): 52kg.cm

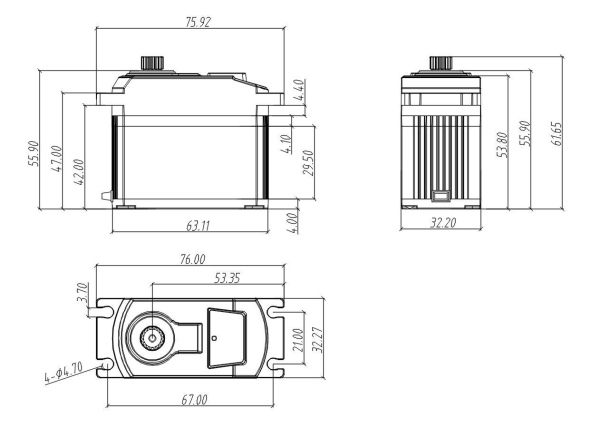

Dimensions: 63.1X32.2X55.9mm
Weight: 163 g
Connector Wire Length: Futaba  360 mm
Bearing: 2BB                                                      Gear Teeth:17T
