Product 产品



PDI-HV7246MG

Category:
Coreless Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs    1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6.0V): 38.6kg.cm
Stall Torque (8.4V): 47.8kg-cm

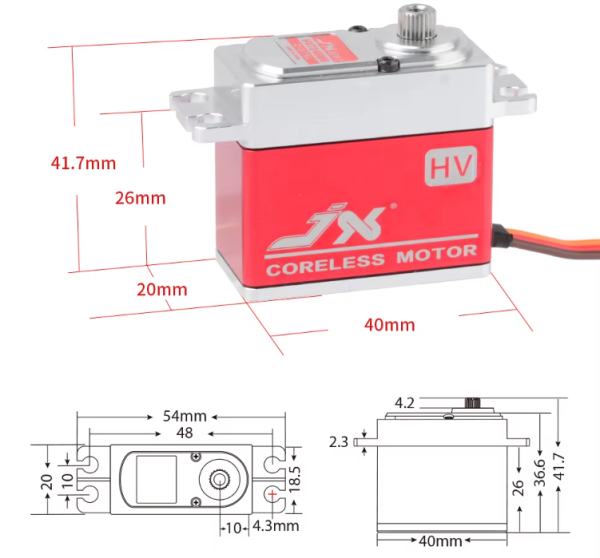

Dimensions:40.5X20.5X36mm
Weight:  72g (2.54oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
