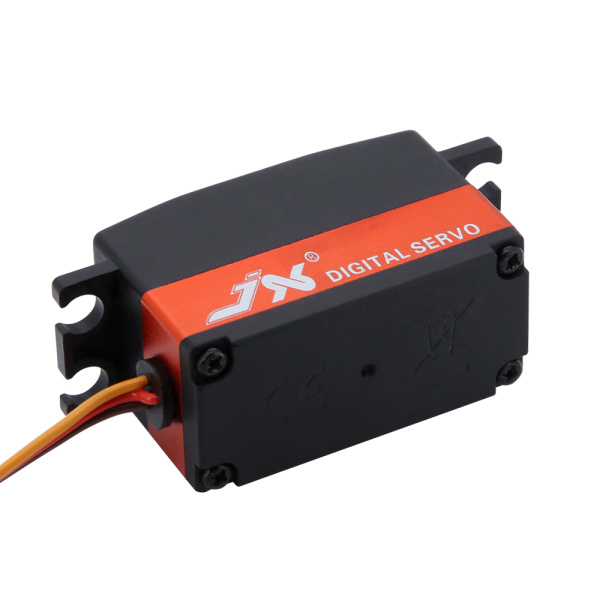

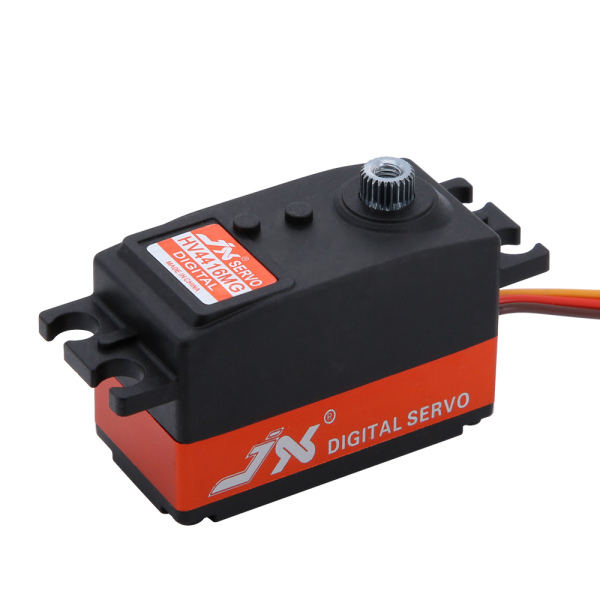

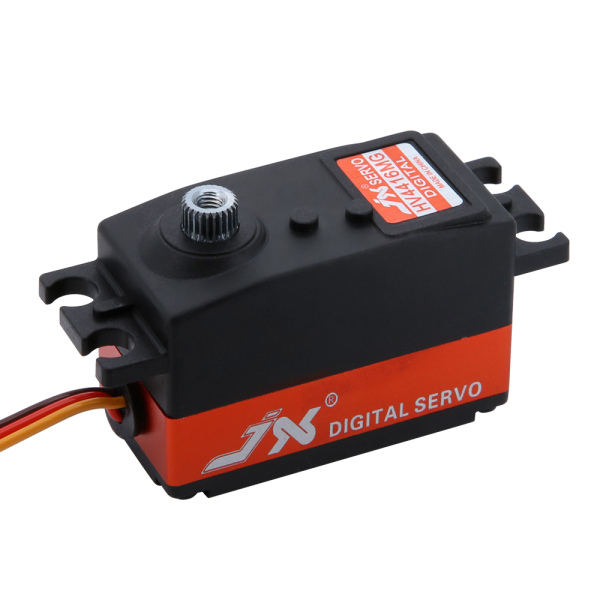

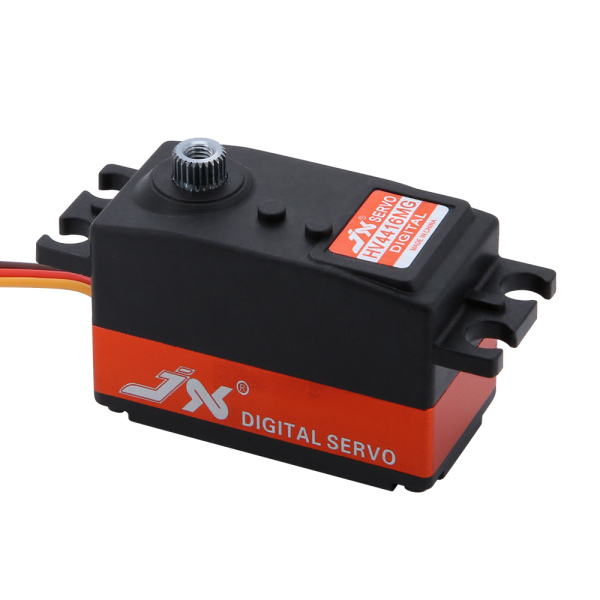

PDI-HV4416MG

Category:
Standard Servos, Waterproof Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Dead band: 2μs                                        Working frequence:1520μs / 330hz
Motor: High Quality Core Motor                               Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.11 sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 12.6 kg.cm
Stall Torque (8.4V): 15.6 kg.cm
Dimensions: 40.5X20.5X28mm
Weight:  47 g
Connector Wire Length: JR  220 mm
Bearing: 2BB

Waterproof
