PDI-1151MG

Category:
Waterproof Servos, Mini Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs    1520μs / 330hz
Motor: coreless motor
Operating Speed 4.8V): 0.12sec/60°
Operating Speed (6.0V): 0.1sec/60°
Stall Torque (4.8V): 3.2kg.cm
Stall Torque (6.0V): 3.6kg.cm

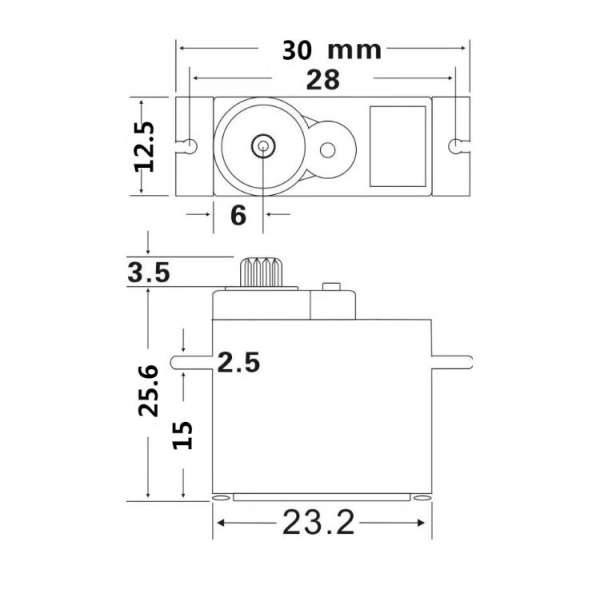

Dimensions:23.2 x 12.5x 25.6mm
Weight:  15g
Connector Wire Length: JR  360 mm
Bearing: 2BB
