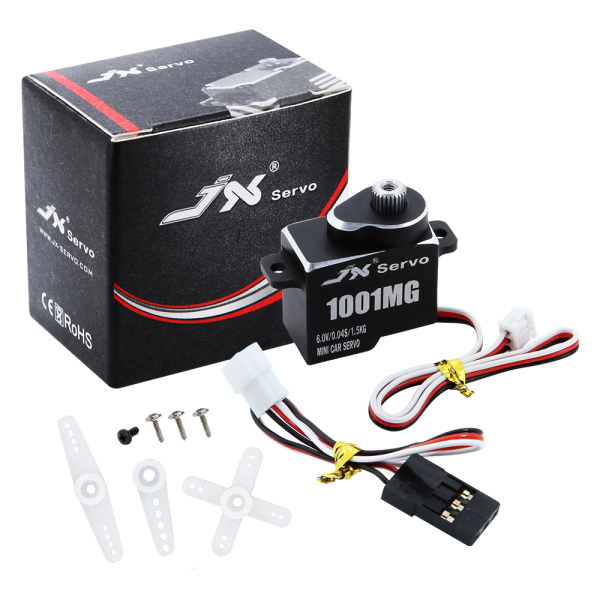

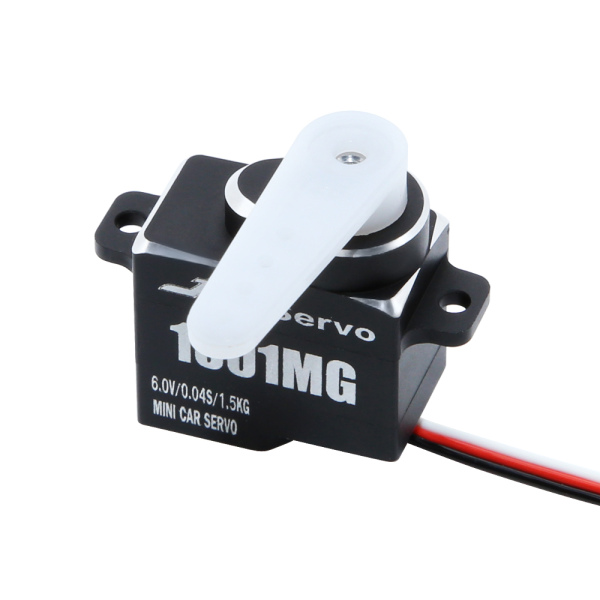

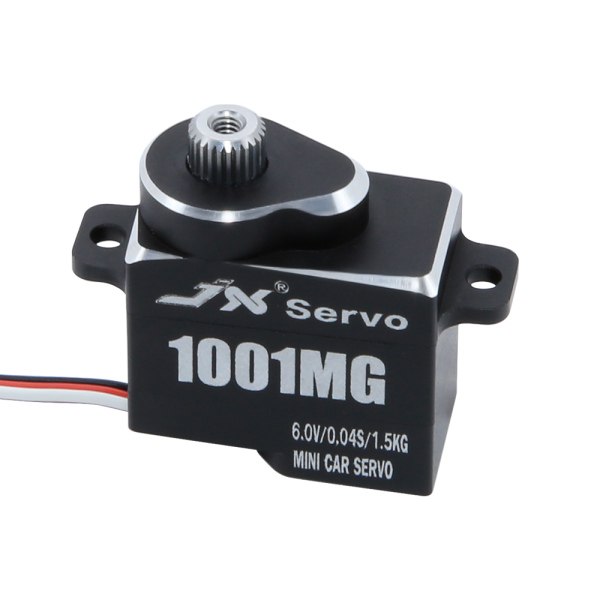

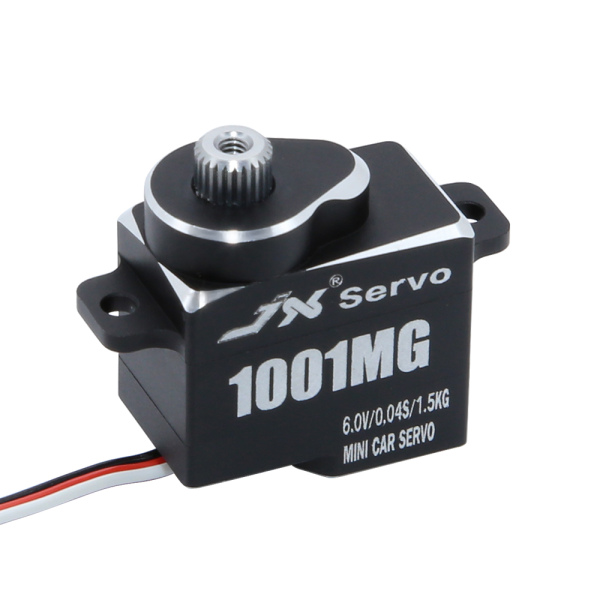

PDI-1001MG

Category:
Mini Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}

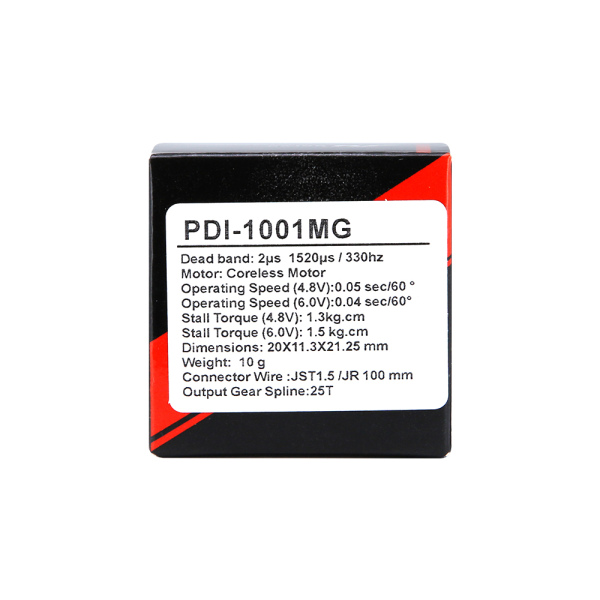

Description

Dead band: 2μs                                                 Working frequence:1520μs / 333hz
Motor:Coreless Motor                                    Voltage Range:4.8-6.0V
Operating Speed (4.8V): 0.05 sec/60°                       Operating Speed (6.0V): 0.04 sec/60°
Stall Torque (4.8V): 1.3 kg.cm
Stall Torque (6.0V): 1.5 kg.cm
Dimensions: 20X11.3X21.25mm
Weight:  10g

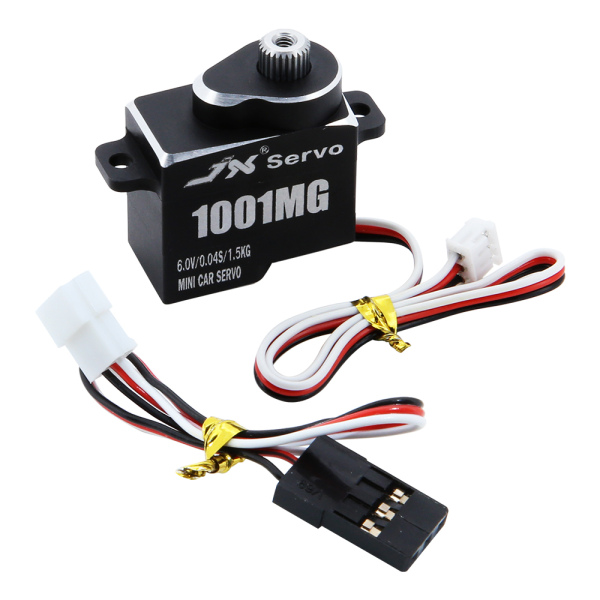

Connector Wire Length:JST1.5  100 mm +JR WIRE
Bearing: 1BB                                                              Output gear spline:25T
