Product 产品

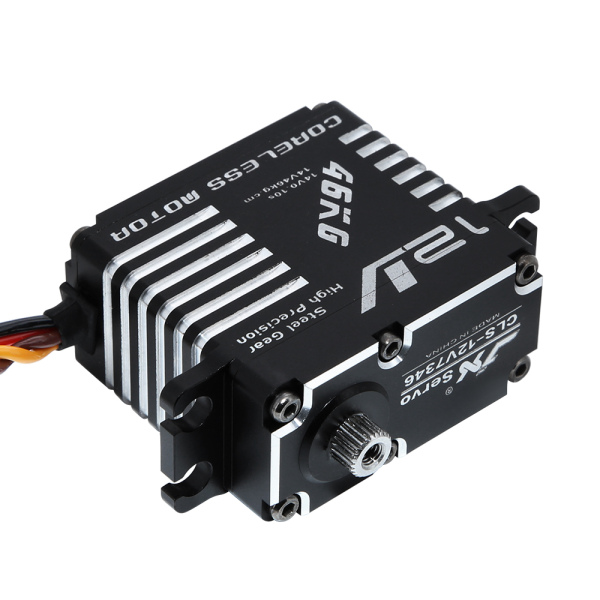

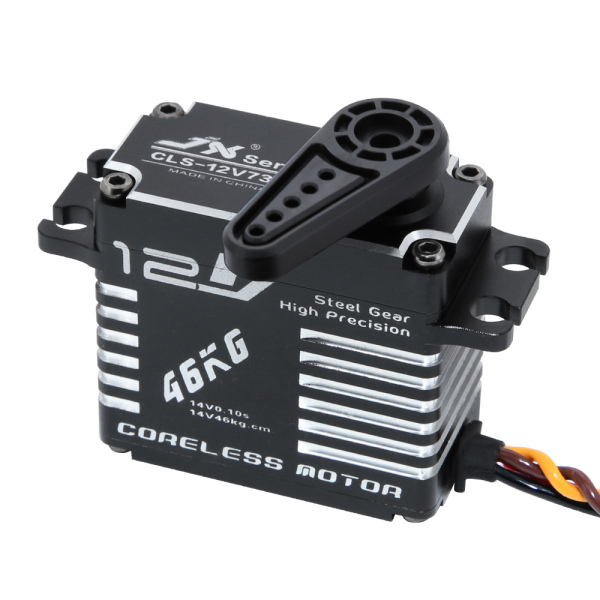

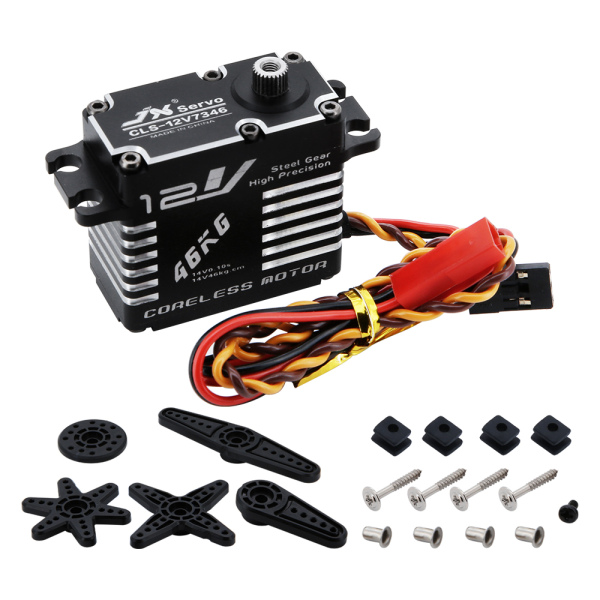

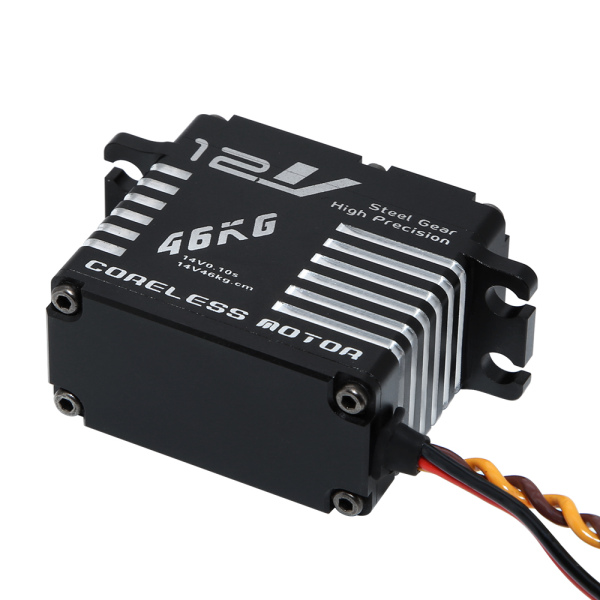

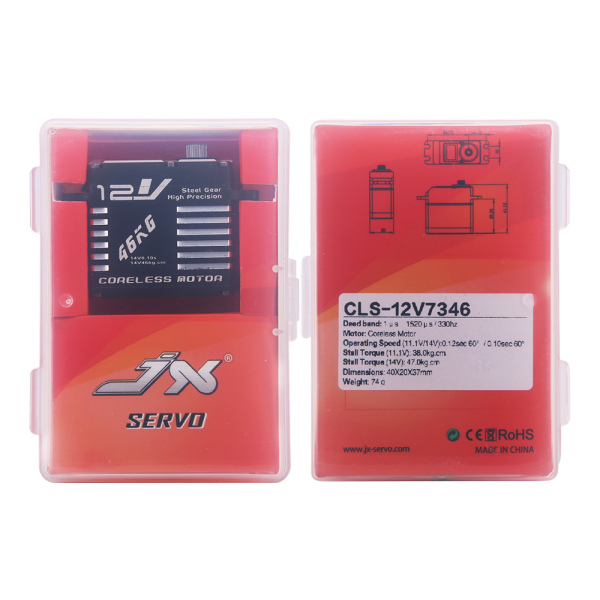

CLS-12V7346

Category:
Coreless Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Voltage range：11.1V-15V
Dead band: 2μs    1520μs / 330hz
Motor: coreless motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (14.0V): 0.10sec/60°
Stall Torque (11.1V): 38kg.cm
Stall Torque (14.0V): 47kg.cm
Dimensions:40X20X37mm
Weight:73g
Connector Wire Length: JR  265 mm
Bearing: 2BB
