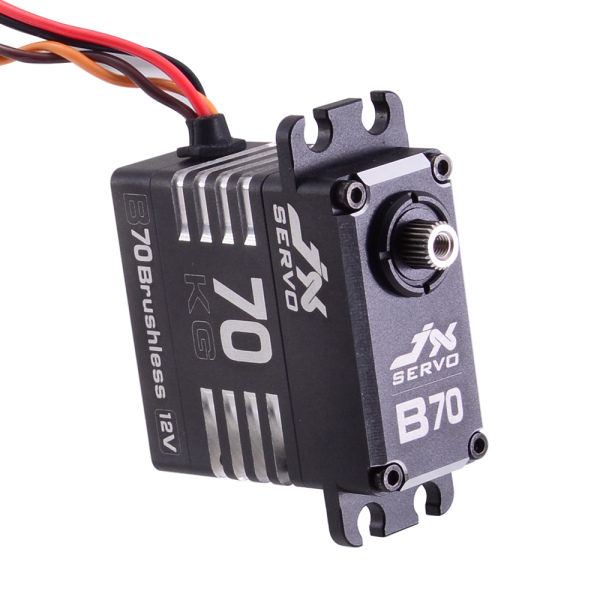

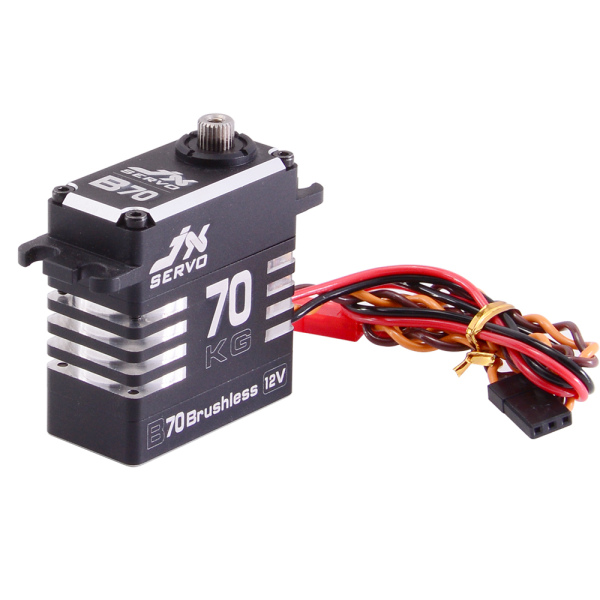

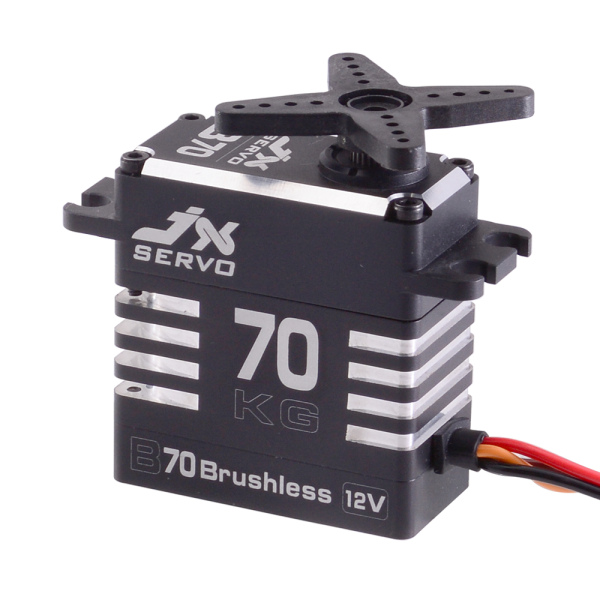

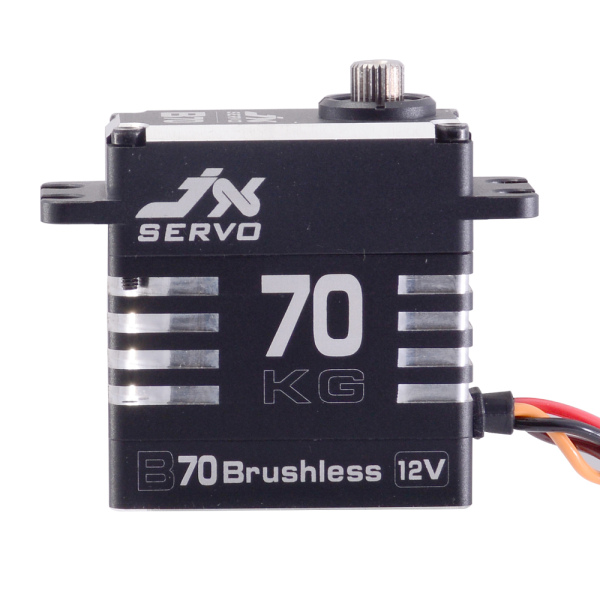

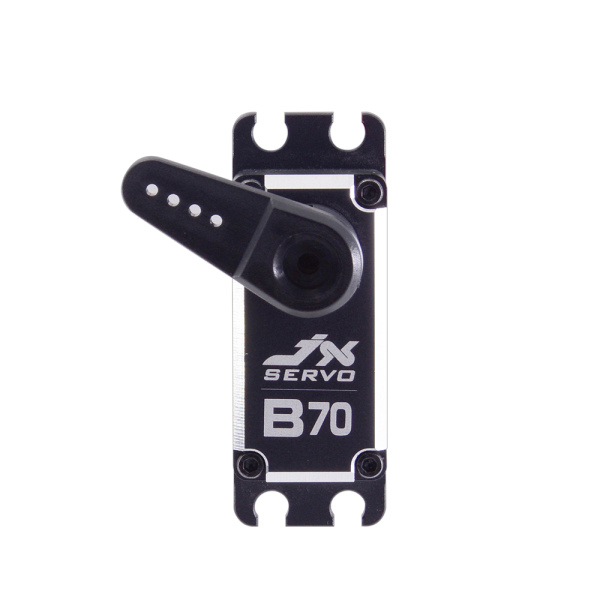

B70

Category:
Brushless Servos
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Voltage range：11.1V-15V                                              Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°

Dead band: 2μs    1520μs / 330hz
Motor: Brushless Motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (14.0V): 0.10sec/60°
Stall Torque (11.1V): 61kg.cm
Stall Torque (14.0V): 72kg.cm
Dimensions:40X20X43.3mm
Weight: 87g
Connector Wire Length: JR  265 mm
Bearing: 2BB
